La Pesadilla

To Read The Full Article, Go To www.cyclesource.com

Article By: GTP

Photos By: Melissa Shoemaker

Originally Published In The July 2018 Issue Of Cycle Source Magazine

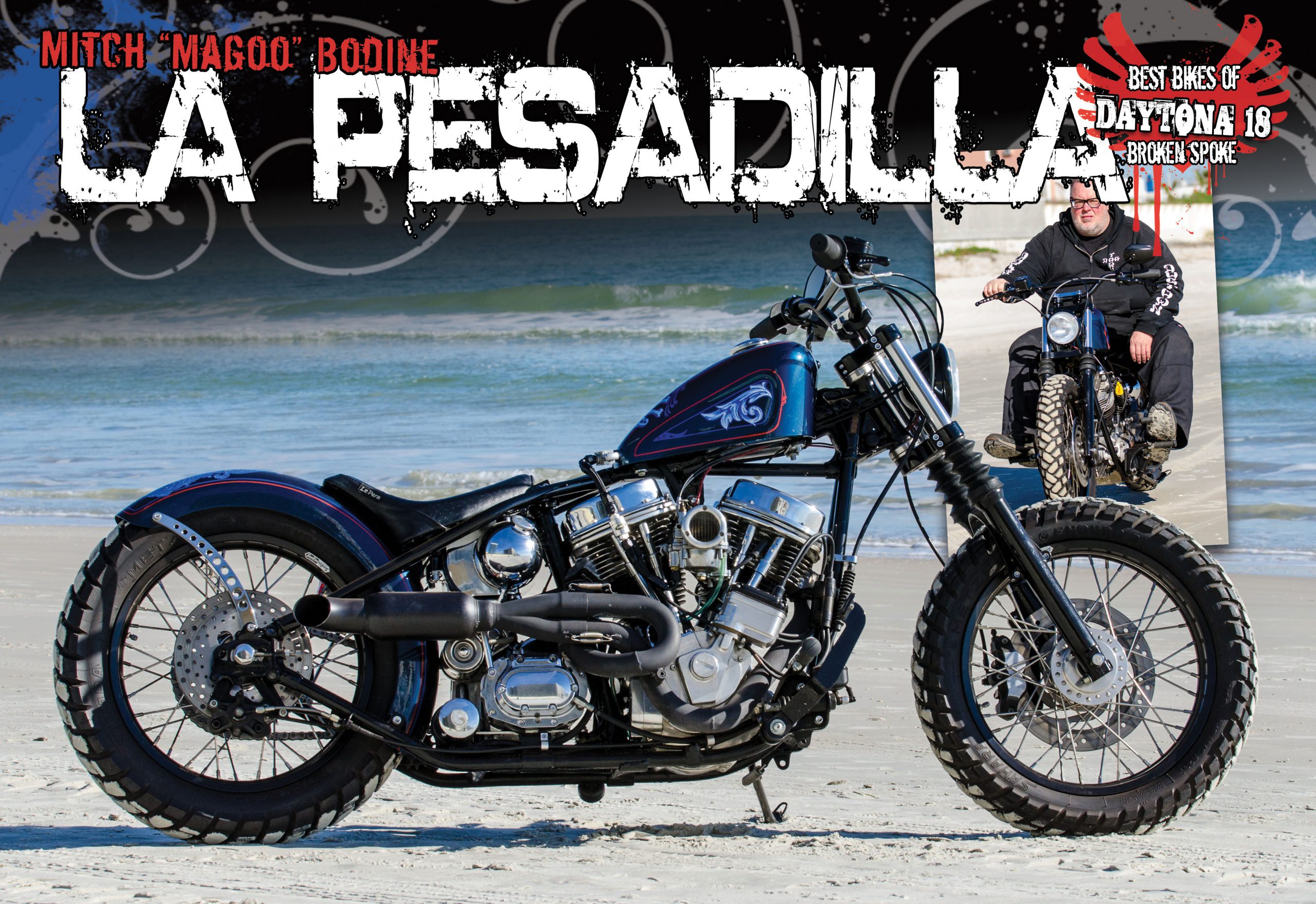

With the boys over on the left coast either slidin’ sideways on their Dynas or goin’ crazy for anything motorcycle related as long as it was sitting in a barn for a grip of years. Top dollar is expected for anything leakin’ oil and built back in the day, probably by some guy that was three days into a crank bender. Contrastingly, the Dyna, bagger, FXR guys are off doin’ their thing and building rocket ships featuring all the latest technology designed to carry you and your two-foot risers to terminal velocity as spectacularly as possible. Somewhere between the ‘high tech’ and the ‘incredible barn find’ there is a bunch of great components both factory issued and aftermarket that when assembled properly have the makings of a great sled that’s efficient, powerful, reliable and just badass….and noticeably untrendy. As fate would have it, I happen to have a fine example of just such a bike made with just those parts. The bike that is currently sticking to your eye buds is owned by Jim Gibbons out of Boston Mass and built by Mitch “Magoo” Bodine out of South Jersey. Starting with a titled ’77 fourspeed frame that was sent out to 47 Industries for the hardtail conversion. Mitch wanted to retain the performance and profile, so the dimensions were left relatively stock aside from the hardtail.

Keeping with the stock dimensions a set of 39mm HD legs bound together with a set of triple trees from Bill over at Bling’s. A set of simple Biltwell bars run factory HD handlebar controls while Harley-Davidson forward controls were adapted using Fab Kevin hardware. A set of 18” of Sun Rims and a set of stainless Buchanan wrap a set of HD hubs front and rear. Rolling a set of Metzler Sahara tires used front and rear so you don’t have to worry about whatever trouble you might get yourself into. Not being constrained to build a bike to fit in any category Mitch was given the liberty to use whatever brake components he felt would work the best. Running a 10” HD rotor in the rear a Fabulous Kevin rear caliper bracket was incorporated to run the ZX-10 caliper. Up front, a HD 11” rotor is squeezed by a GSXR caliper hung by a Speed Merchant bracket. Initially, Mitch had a Delcron cased slabside Shovel that was built by someone that spent a lot of money on go-fast parts.

Unfortunately, just because your credit card was approved does not mean you know how to build a motor. The valves interfered with the pistons and was found to be unusable and shelved. Luckily, one of Mitch’s buddies had this STD built Shovelhead sitting around forever, and a deal was struck, and the motor ended up powering this ride. The motor was originally built at STD years ago and is built with all the good stuff. It’s a cone configuration with Truett and Osborn crank assembly stroked to 88” using Wiseco forged pistons in S&S cylinders and topped with a set of STD dual plugged Panheads. Feeding the fuel is a tried and true S&S Super E carb, and Andrews “B” grind cam and the whole mess gets fired by a Morris Magneto. The oil tank is a Speed King that has been modified to use A/N fittings and end holds the AntiGravity battery. Keep in mind that these lithium batteries can be temperamental if your charging system isn’t on point, so Mitch had one built by Cycle Electric designed explicitly for lithium batteries. There hasn’t been a problem yet.

All this power is transferred to the pavement via an H-D six-speed transmission. An often overlooked take off item that will save you a ton of money for an overdrive but does necessitate the use of an electric starter; this has been handled by a Tech Cycle starter attached to a custom chain drive open primary also by Tech Cycle. The primary is running a 530 chain instead of the usual dual row chain. The frame was treated to a simple black coating, and the sheet metal paint job was mocked up with a rattle can. When the Led Sled rear fender and Sportster tank were brought to Ryzart in Northern New Jersey, they decided that he would go with what they had mocked up and he did it to show quality specs. A simple blue with silver leaf accents, none of that mondo-dune buggy-bass boat, carnival flake that’s all the rage this week. This isn’t one of those builds that’s looking to change the world or show some incredibly rare dustcovered relic. It’s an assembly of take off parts and a potent drivetrain, assembled for a bike that is clean, simple and capable of taking on the street in stellar fashion. Built to be ridden hard, the right coast way. “GTP”

La PesadillaTECH SHEET

Bike Name: La Pesadilla

Owner: Jim Gibbons

City/State: Boston, MA

Builder: Mitch Bodine

Year: 1977

Model: FLish

Value:

Time:

ENGINE

Year: 1977

Model: Cone Pan

Builder: STD Development

Ignition: Morris Magneto

Displacement: 88cu

Pistons: S&S

Heads: STD Dual Plug Panhead

Carb: S&S Super E

Cam: Andrews B

Air Cleaner: Old Stf Cycle

Exhaust: Magoo’s

Primary: Tech Cycle Performance

TRANSMISSION

Make: Harley-Davidson

Shifting: Foot

FRAME

Year: 1977

Model: Shovel 47 Industries

Rake: Stock

Stretch: Stock

Forks

Builder: Harley-Davidson

Type: 39mm

Triple Trees: Bling’s Cycles

Extension: None

WHEELS

Front Wheel: Sun Rims w/ Buchanan SS Spokes

Size: 18”

Tire: Metzler Sahara

Front Brake: Speed Merchant GSXR

Rear Wheel: Sun Rims w/ Buchanan SS Spokes

Size: 18”

Tire: Metzler Sahara

Rear Brake: Fab Kevin ZX

PAINT

Painter: Ryzart

Color: Blue

Type: Awesome

Graphics: Silver Leaf

Chroming: Super Chrome, Asbury Park, NJ

ACCESSORIES

Bars: Biltwell

Risers: Harley-Davidson

Hand Controls: Harley-Davidson

Foot Controls: Fab Kevin/Harley-Davidson

Gas Tank(s): Sportster

Oil Tank: SpeedKing Racing

Front fender:

Rear Fender: Led Sled Customs

Seat: LaPera

Headlight: Lowbrow Customs

Tail light: Speedway Motors

Speedo: None

photographer: Melissa Shoemaker
