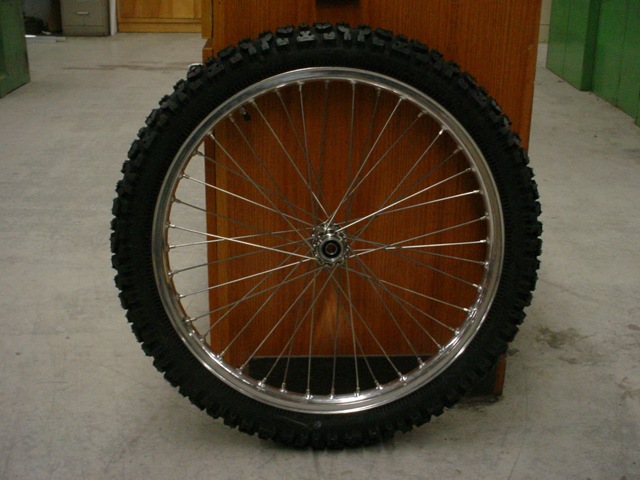

Kevin “Teach” Baas is now introducing his 23” front wheel, that comes with your choice of a lightweight alloy polished rim or a chrome plated steel rim. It also comes with a spool hub and 5/8 axle size sealed bearings and spacers, this is a 40 hole spoke pattern hub and wheel.

K_new knuck_2Pictured is one I am running on my 1939 Knuklehead chop. Here is the info on the tire Rated for speeds up to 93mph DOT certified Balanced for on- and off-road performance 4-ply construction for long-wearing durability Dimpled tread pattern with many edges to maximize traction Self-cleaning tread blocks for traction in mud and loose terrain Sidewall ID Information; Bridgestone 3.00-23 M/C 56P Trailwing-9 Dimensions: Inflated Width /Measuring Rim Width: 3.50 in./1.60 in. Inflated Diameter: 27.7 in. Acceptable Rim Width(s): 1.60 in. Deepest Tread Depth: 9/32 in. Directional Arrow: None
Capacities and Construction: Load Capacity/Inflation Pressure: 495 lbs/32 PSI Tread Plies/Material: 2 Nylon Sidewall Plies/Material: 2 Nylon DOT approved for Road Use: Yes Tube or Tubeless: Tube Type
Kevin “TEACH” Baas
BAAS METAL CRAFT CUSTOM CYCLES AND FABRICATION
http://www.baasmetalcraft.com
Custom made garage built motorcycle parts, vintage chopper builds and other cool stuff
952-215-1252
“When in doubt, burn out!”

One thought on “BAAS METAL CRAFT CUSTOM CYCLES AND FABRICATION NEW HUB

  1. What length Springer do I need to run your 23 inch rim? I’m very interested in one, but want to know if itll fit my stock length springer? Or do i need a longer one so the wheel doesn’t hit the bottom of my springer.
